What is a portable truck scale?

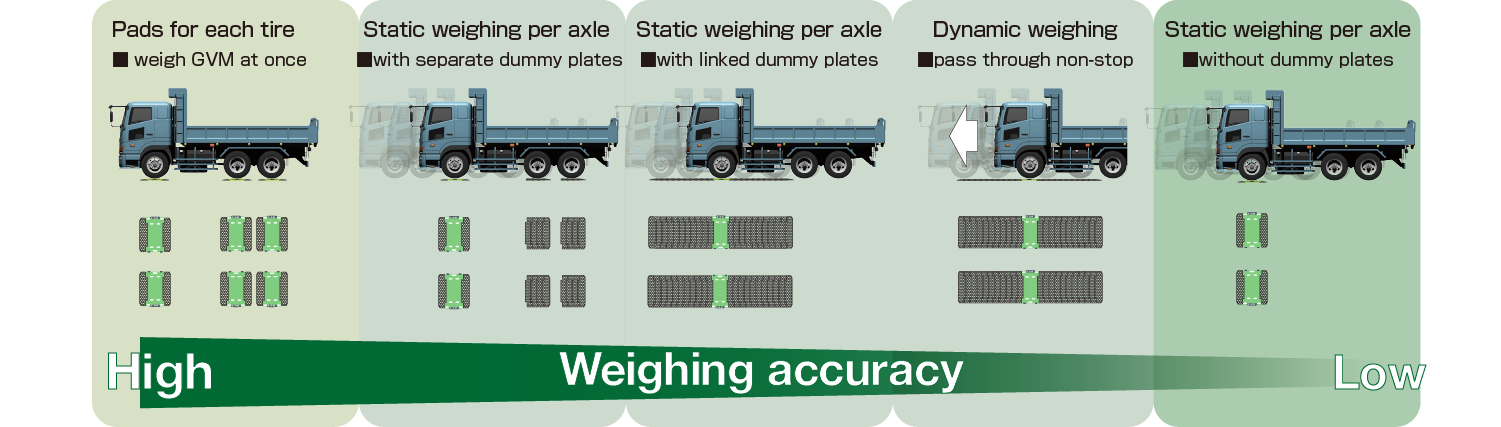

A portable truck scale is a small axle scale. It is easy to carry, so it can be easily moved and weigh anywhere, anytime. It is very convenient when you want to move the truck scale and weigh, not permanently, such as for discharge and filling measurements at construction sites and inside factories. Our axle scale has static weighing specifications, dynamic weighing specifications, and small car specifications.
We offer the optimal portable truck scale according to the price [cost], and of course, we also have rentals for temporary use, so please feel free to contact us!!
Portable Truck Scale [ZAK] Introduction Video
What is ZAK ?
ZAK is a small, lightweight, wireless, and portable truck scale that is an original product of NIKKO SCALES Japan. Unlike traditional truck scales that require installation, a major feature of ZAK is that it can be easily moved and measured anywhere, anytime. It can handle difficult environments where normal truck scales would struggle, such as when measuring in various locations or in narrow places where sufficient installation space cannot be secured. Furthermore, it can also connect wirelessly with the indicator, so there is no need for bothersome cables. The ZAK series has dust and water resistance equivalent to IP68, greatly improving its durability. Measuring in the rain is of course possible, and it is also okay to wash it thoroughly after use.

What can be done with ZAK?



Features
1.Detachable and Replaceable Lithium-ion Battery
By adopting replaceable lithium-ion batteries, it is possible to charge without moving the main unit. Batteries are also available for individual sale, allowing you to charge spare batteries while using the pad.

2.IP68 Equivalent Dust and Water Resistance
ZAK-08W Wireless Portable Scale has achieved IP68 equivalent dust and water resistance thanks to appropriate structural design and sealing of each component. This not only enables weighing in rainy conditions but also significantly enhances durability.

3.Display Installed on the Pad Section
With IP68 equivalent dust and water resistance, a weight display has been installed on the pad section. This is ideal for simple weight checks without using an indicator, allowing weight confirmation directly on the pad. Additionally, by wirelessly connecting to the wireless multi-indicator with a printer (MS-07W) equipped with IEEE802.15.4 wireless communication standard, it can be visualized the balance and weight distribution of each pad at a glance. The communication range is from 30m to 100m*, making installation much easier without the limitations of cables or the risk of disconnection.

Dimensions
(mm)

Model | Maximum Capacity(t) | Readability(kg) | Platform Height (mm) | Platform Size(W×L)mm |
---|---|---|---|---|
ZAK-08W-10 | 160 | 10 | 33 | 800×500 |
ZAK-08W-15 | 240 | 10 | ||
ZAK-08W-20 | 320 | 20 |
